System Alerts

The System Alerts tab displays the system-defined parameters used to detect and respond to Infractions, Violations, Possible Criminal Acts, and Detect and Avoid (DAA) events. These alert conditions are based on operational standards and can be customized by the SPS Support Team to reflect specific Areas of Responsibility (AOR) or regional regulatory requirements.

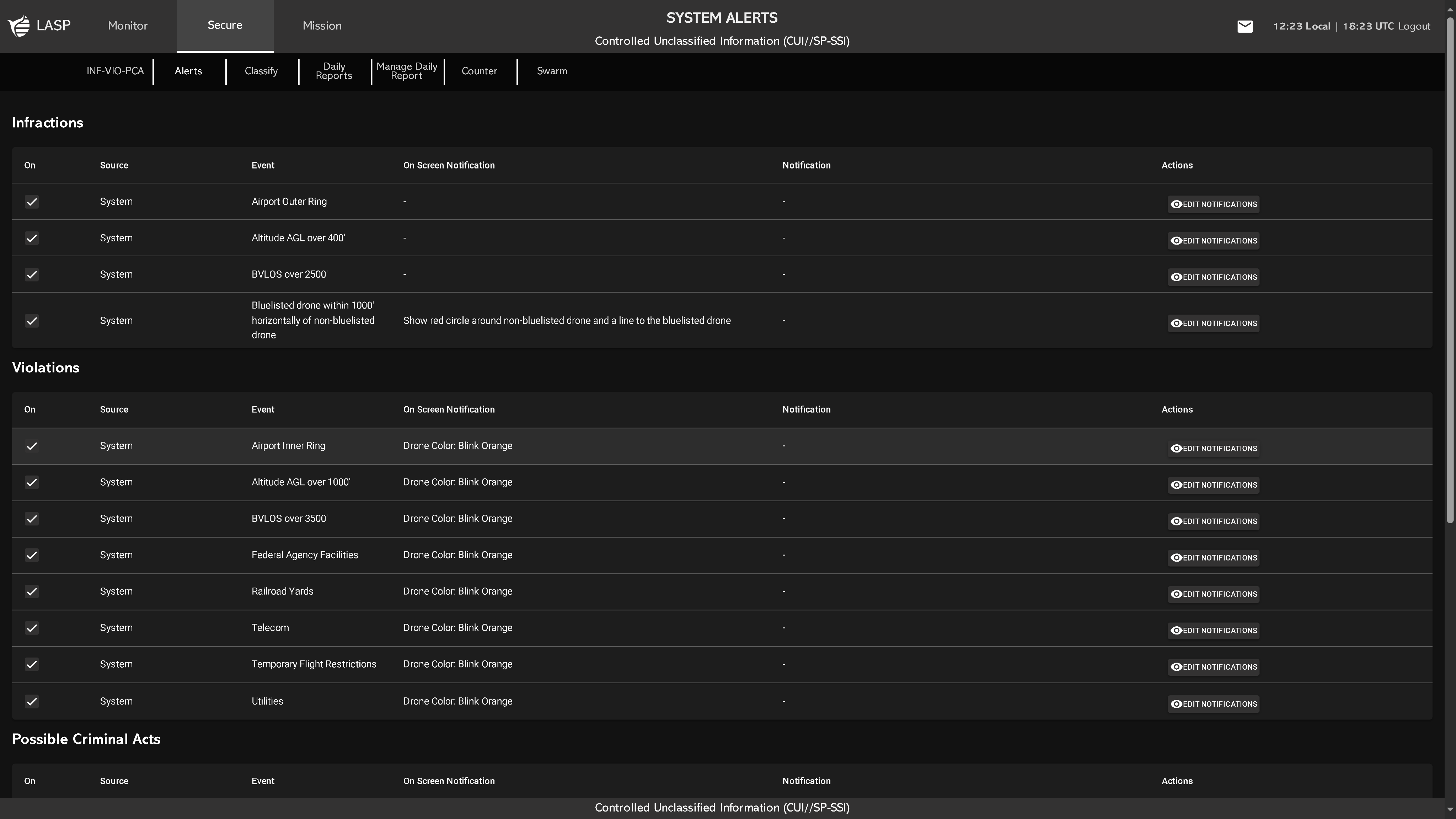

eplasp.io_(High Res) (15) 1

Each alert entry includes the following fields:

  • On (Checkbox) – Allows users to toggle the alert on or off.
  • Source – Indicates which sensor or data source generated the alert.
  • Event – Describes the specific condition or trigger that caused the alert.
  • On-Screen Notification – Indicates the default notification behavior shown on-screen, as defined by the UNIFY Support Team (not user-editable).
  • Notifications – Lists all enabled delivery methods for the alert, such as Email, Mobile Text, Visual Alert on COP, and Audible Alert on COP. These can be customized by the user.
SystemAlerts-MadewithClipchamp-ezgif.com-video-to-gif-converter 1
Managing Notification Preferences

To customize how notifications are received, users can click Edit Notifications, which opens a popup.

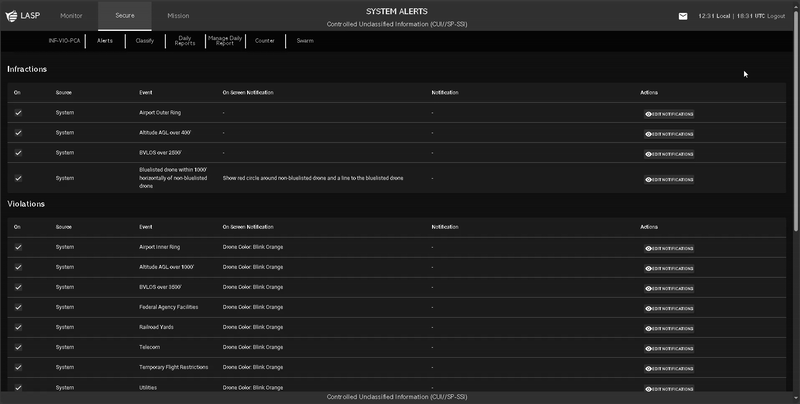

SystemAlertsEditNotifications-MadewithClipchamp-ezgif.com-video-to-gif-converter 1

In this popup, users can enable or disable the following notification types:

  • Email
  • Mobile Text Message
  • Visual Alert on COP
  • Audible Alert on COP
This structure separates On-Screen Notifications (preset visual behaviors) from user-defined notification delivery methods, giving users flexibility to tailor alert visibility while maintaining standardized system behavior.

Detect and Avoid (DAA) Alerts

The DAA alerts section includes an additional option:

  • View Past Alerts

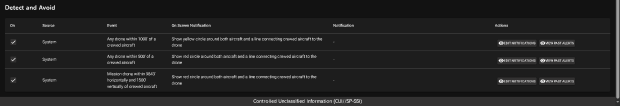

eplasp.io_(High Res) (16) 1

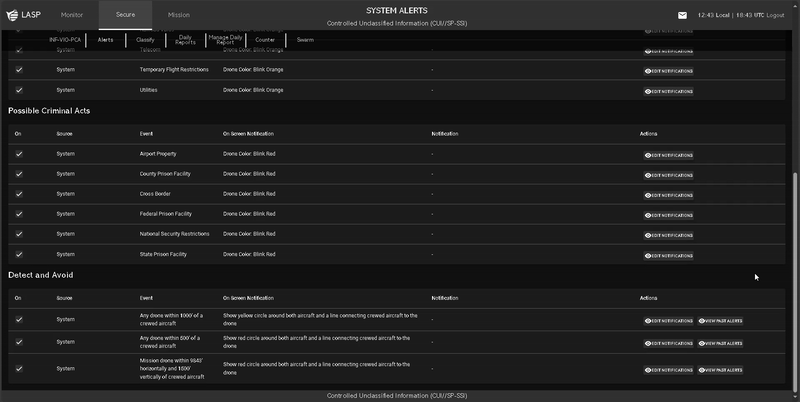

SystemAlertsViewPastFlightAlerts-MadewithClipchamp-ezgif.com-video-to-gif-converter 1

Clicking this button redirects users to the Flight History page (More about Flight History), automatically filtered to show flights that triggered a DAA alert. DAA alert types include:

  • Any drone within 1,000 ft of a crewed aircraft
  • Any drone within 500 ft of a crewed aircraft
  • Mission drones within 9,843 ft horizontally and 1,500 ft vertically of a crewed aircraft

The filtered Flight History table includes:
  • Flight ID
  • Serial Number
  • UAS Type
  • Distance Between Pilot and UAS (ft)
  • Detection Time
  • Flight Duration
  • Max Altitude
  • Violations
  • Min Distance (ft)
  • Flight Profile – Clicking “VIEW” opens a list of past priors for the aircraft (More about Flight Profile)
  • View Time Machine – Redirects to the COP Time Machine, preloaded with the flight’s detection time (More about Time Machine)
