Ingest WISP (CAT62, CAT63)

The Ingest WISP tab allows users to configure and manage inbound data from WISP Camera.

Main Table View

The table displays all configured WISP sources with the following fields:

  • Existing WISP IP
  • Asset ID
  • Asset Name
  • Actions (e.g., delete or modify source)
The Asset will display:
  • Green if the WISP is actively sending heartbeat signals
  • Light Green when the connection is healthy, but has no active tracks (still healthy)
  • Red if the WISP is offline or not detected
Adding New Source

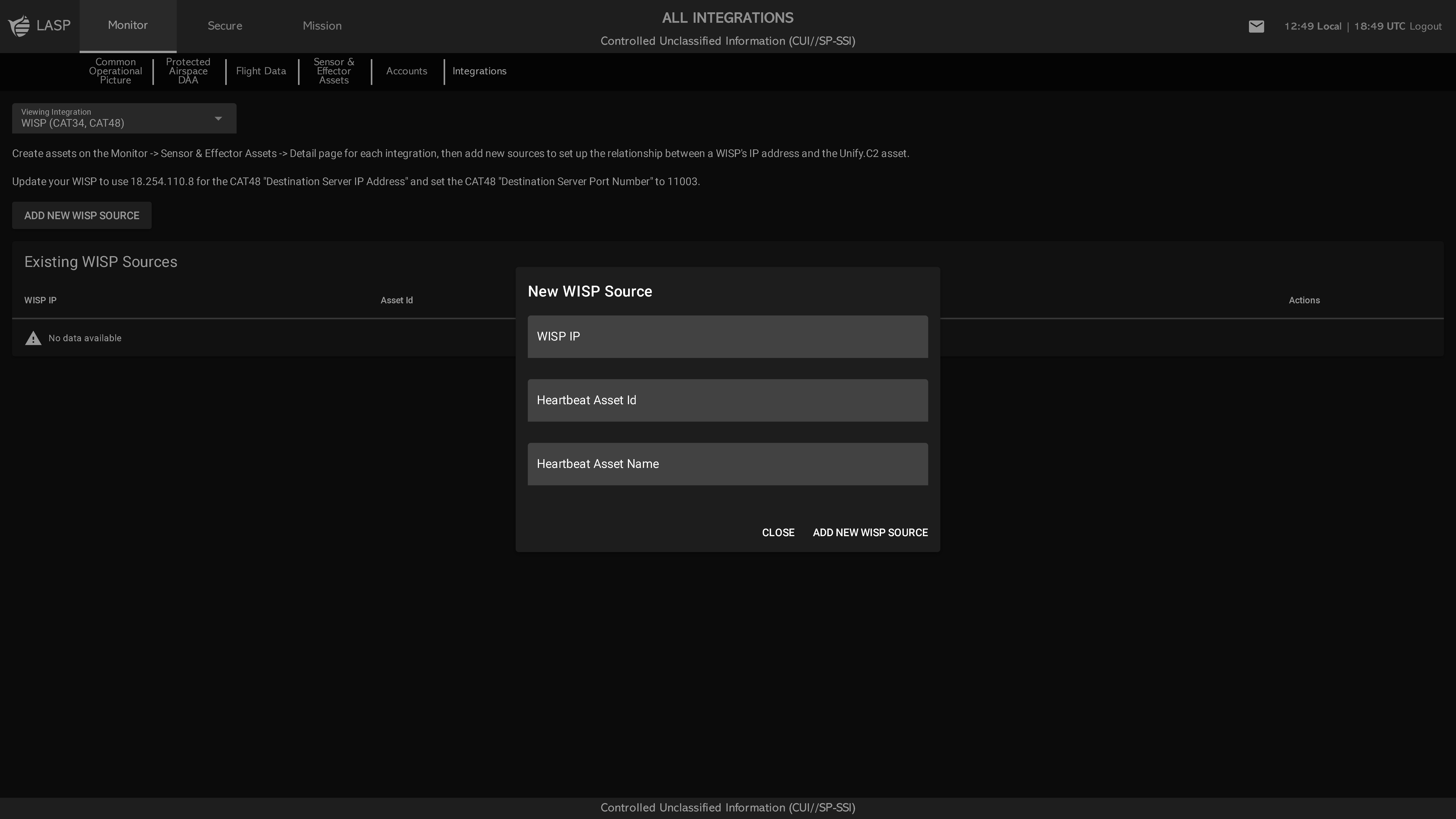

Click ADD NEW WISP SOURCE to open a popup with the following input fields:

  • WISP IP
  • Select Asset (Dropdown) – Select an existing asset to connect as the heartbeat source
    • ADD NEW ASSET – Optional button that allows the user to create and connect a new heartbeat asset directly from the popup
Click ADD NEW WISP SOURCE to save the entry and add it to the table, or click CLOSE to cancel.
Configuration Notes
  • WISPs must be configured to send data to the correct IP address and port (11003).
  • Refer to the Integrations page on the UNIFY.C2 website to find the correct destination IP address.
  • For on-premise installations, use the on-prem server's IP address as the Destination Server IP Address in the WISP configuration interface.
