Ingest CoT

The Ingest CoT tab lists existing TAK Server Sources in a table with columns: Host, Port, CA Certificate, Server Client Certificate, and Actions.

Note: This feature only supports ingestion from TAK Servers using Cursor on Target (CoT) protocol.

Main Table View

The table lists all configured TAK Server sources with the following columns:

  • Host
  • Port
  • CA Certificate
  • Verify Certificate
  • Server Client Certificate
  • Asset ID
  • Asset Name
  • Actions
Adding a New Source

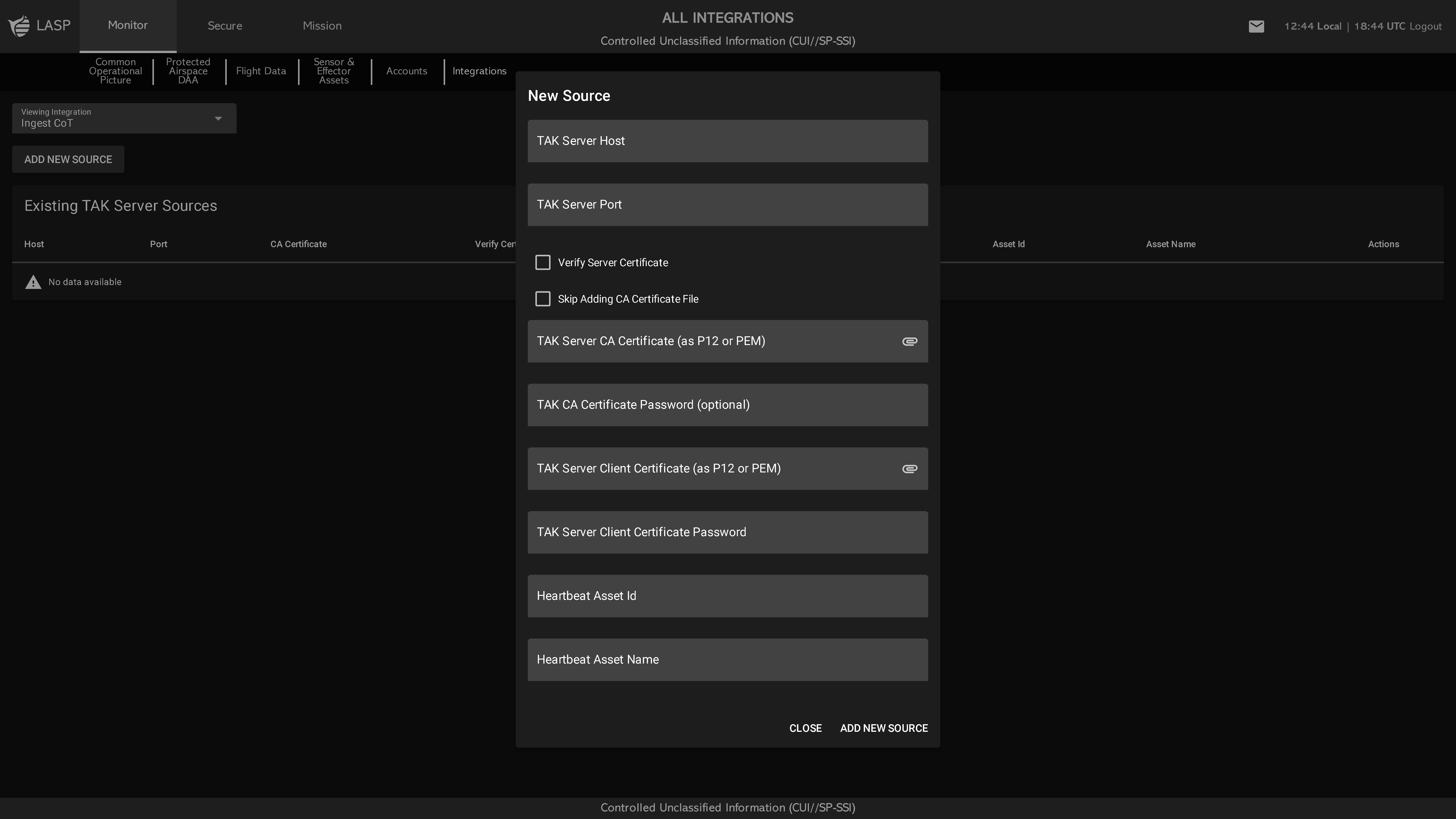

Click ADD NEW SOURCE to open a popup with the following input fields:

  • TAK Server Host
  • TAK Server Port
  • Verify Server Certificate (checkbox)
  • Skip CA Certificate (checkbox)
  • Attach TAK Server CA Certificate (P12/PEM)
  • TAK CA Certificate Password (optional)
  • Attach TAK Server Client Certificate (P12/PEM)
  • TAK Server Client Certificate Password
  • Select Asset (Dropdown) – Select an existing asset to connect as the heartbeat source
    • ADD NEW ASSET – Optional button that allows the user to create and connect a new heartbeat asset directly from the popup
Click ADD NEW SOURCE to save the configuration, or click CLOSE to cancel.
