Ingest BRS-14

The Ingest BRS-14 tab allows users to add and manage data sources from BRS-14 base stations.

Main Table View

The table displays all configured BRS-14 sources with the following columns:

  • Base Station IP
  • Asset ID
  • Asset Name
  • Actions (e.g., delete or edit)
Adding a New Source

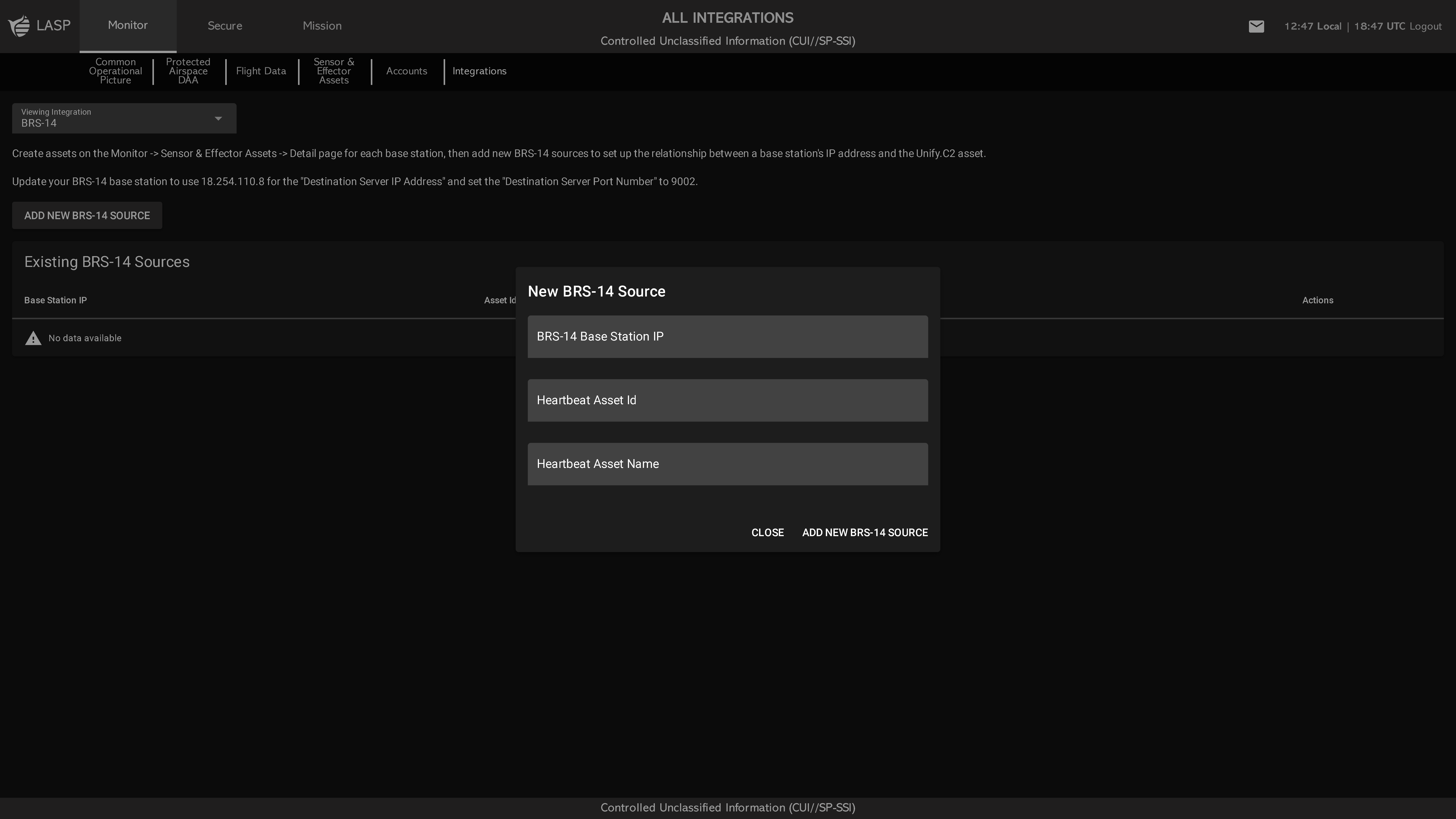

Click ADD NEW BRS-14 SOURCE to open a popup with the following input fields:

  • BRS-14 Base Station IP
  • Select Asset (Dropdown) – Select an existing asset to connect as the heartbeat source
    • ADD NEW ASSET – Optional button that allows the user to create and connect a new heartbeat asset directly from the popup
Click ADD NEW BRS-14 SOURCE to save and add the source to the table, or click CLOSE to cancel the action.
Configuration Notes
  • Connect your BRS-14 base station to the desired tags to begin receiving telemetry.
  • The base station must be configured to forward data to the correct IP address and port (9002).
  • For on-premise installations, use the IP address of the on-prem UNIFY.C2 server as the target destination.
  • Refer to the Integrations page on the UNIFY.C2 website to obtain the appropriate external IP address.
