Forward CoT

The Forward CoT tab allows users to configure data forwarding from UNIFY.C2 to external TAK Server destinations. This feature enables interoperability with tactical networks and shared situational awareness platforms.

What It Does
  • Forwards all active tracks on the COP, including fused aircraft tracks.
  • Supports TAK Server integration for real-time situational data sharing.

Main Table View
  • The table lists all configured TAK Server destinations with the following columns:
    • Host
    • Port
    • CA Certificate
    • Verify Certificate
    • Server Client Certificate
    • Asset ID
    • Asset Name
    • Actions
Adding a New Destination

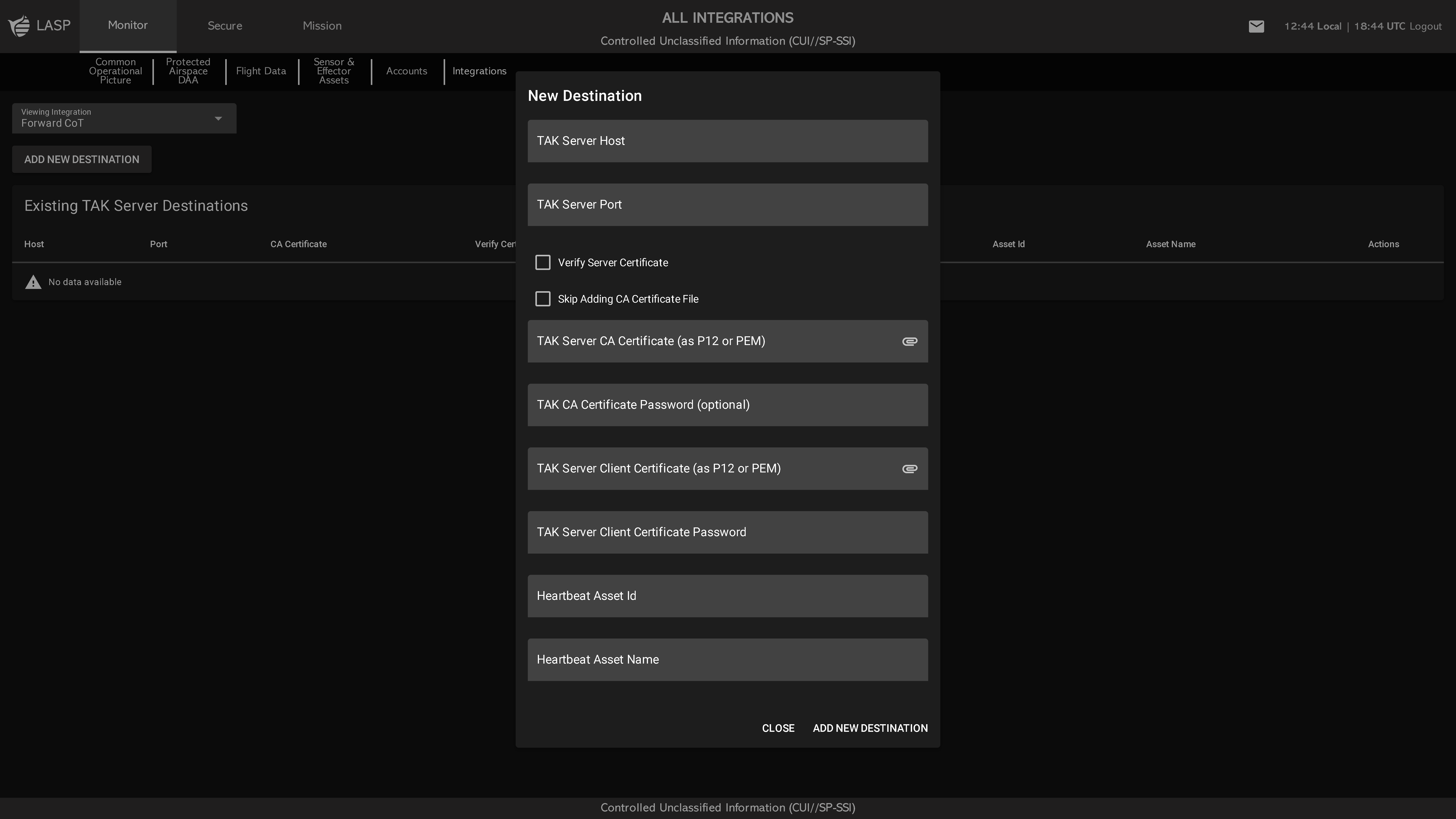

Click ADD NEW DESTINATION to open a popup with the following input fields:

  • TAK Server Host
  • TAK Server Port
  • Verify Server Certificate (checkbox)
  • Skip CA Certificate (checkbox)
  • Attach TAK Server CA Certificate (P12/PEM)
  • TAK CA Certificate Password (optional)
  • Attach TAK Server Client Certificate (P12/PEM)
  • TAK Server Client Certificate Password
  • Select Asset (Dropdown) – Select an existing asset to connect as the heartbeat source
    • ADD NEW ASSET – Optional button that allows the user to create and connect a new heartbeat asset directly from the popup
Click ADD NEW DESTINATION to save the configuration, or click CLOSE to cancel.
